PMI pontoon boat trailers come standard with everything you need. LED lights, Radial Tires, Galvanized wheels and axles, large deluxe winch stand with large steps and a 3200 lb. front loading winch. All tandem axle pontoon trailers come with our exclusive Rock Guard textured powder coat paint for rust free performance. Brake trailers have 10” disc brakes, with a modern concealed brake coupler built into the frame of the trailer. Our PMI pontoon trailers are built with a 3/16” thick 4” steel tube frame (5” on Super Duty II™ Trailers), the strongest most durable pontoon trailer made. Designed to fit all major pontoon brands such as, Avalon, Barletta, Bennington, Crest, Godfrey, Harris, Larson, Lowe, Manitou, Sun Chaser, South Bay, Sylvan, and more.
 |
 |
 |
 |
 |
| 10” Disc brakes that are not just slip on brakes. We use true Disc brake axles that are held on with the hubs castle nut. Each axle with brakes has 3500lbs of stopping power. | Modern concealed brake coupler for all brake trailers. Has a lock out solenoid that locks out the brake fluid from engaging the brakes when backing up. We provide you with a 7way round to 5 flat adapter to allow for this. | Modern pontoons have large 25” or 27” pontoon tubes. We use 2×6’s for the bunks to help cradle the larger tubes and support the heavier weight of modern pontoon boats.</class=”auto-style5″> | Our trailers are usually 200-300 lbs. heavier than many other brands of pontoon trailers. Don’t be fooled by extra steel where you don’t need it. We spend extra money to use the thicker 3/16” steel tubing to make the strongest frame in the industry. | What’s Rock Guard Powder Coat? |
| We start by bead blasting our steel frames to remove all the impurities to the steel, then we add our exclusive Rock Guard powder coating. Rock Guard powder coat is 11Mil thick and is the strongest finish in the industry. | ||||
 |
 |
 |
 |
 |
 |
| Strong steel fenders that you can actually stand on. Protects your pontoon boat from stones and other road debris.
This frame is the strongest in the industry
|
LED lights throughout the trailer. It only cost a few extra dollars to change all the lights out to LED. Incandescent lights burst when you back your trailer in the cold water. LED lights draw a fraction of the power and never give you trouble. | ST175/80R13D tires are the most common trailer tire on the market. They have a capacity of 1610 lbs. per tire and if you need a new one you can find them anywhere. | Most pontoon trailers have a 1600 lb. winch. We use a 3200 lb. winch because lets face it, pontoon boats are not getting any lighter. | A simple U bolt is welded to the winch stand. This prevents the boat from bouncing going down the road. Holds your boat down and forward. | Double wheel tongue jacks wont sink down in the dirt, allowing you to move your trailer with ease. |

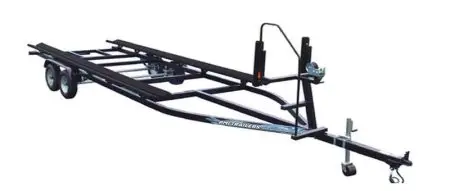

PMI-220 Our 20’ tandem axle PMI bunk style boat trailer for all models of pontoon boats 20’-21′
PMI-220 is 26’3” overall length, with 15’ 2×6 bunks. 3/16” thick 4” steel frame, 13” load range D radial tires,
trailer weighs 1140 lbs. and has a 4500lb capacity. Trailer weighs 1140 lbs. Features dual axle brakes.
PMI-222 Our 22’ tandem axle PMI bunk style boat trailer for all models of pontoon boats 22’-23′
PMI-222 is 28’7″ overall length, with 17′ 2×6 bunks. 3/16” thick 4” steel frame, 13” load range D radial tires,
trailer weighs 1200 lbs. and has a 4500lb capacity. Trailer weighs 1200 lbs. Features dual axle brakes.
PMI-224 Our 24’ tandem axle PMI bunk style boat trailer for all models of pontoon boats 24’-25′
PMI-224 is 30’6″ overall length, with 19′ 2×6 bunks. 3/16” thick 4” steel frame, 13” load range D radial tires,
trailer weighs 1260 lbs. and has a 4500lb capacity. Trailer weighs 1260 lbs. Features dual axle brakes.
PMI-226 Our 26’ tandem axle PMI bunk style boat trailer for all models of pontoon boats 26’-27′
PMI-226 is 32’3″ overall length, with 20′ 2×6 bunks. 3/16″ thick 4″ frame steel, 13″ load range D Radial tires,
trailer weighs 1320 lbs. and has 4500 lb. capacity. Trailer weighs 1320 lbs. Features dual axle brakes.
